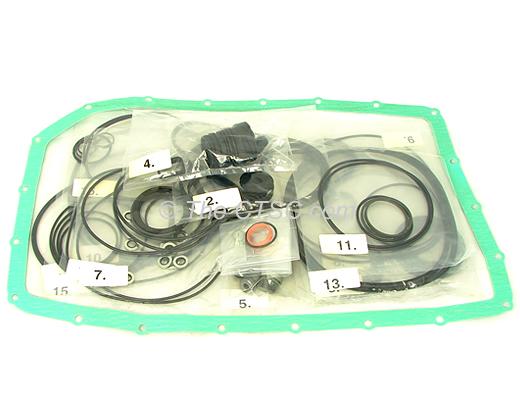

This kit contains all gaskets, seals and o.-rings needed for a complete transmission overhaul.
The gaskets, seals and o.-rings are packaged and labeled in groups.
A diagram showing group useage is attached to the inside of the shipping box lid.
The overhaul kit will fit the following transmissions:
Trans Type |
Where used |

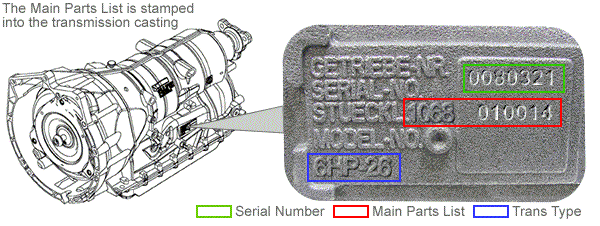

Main Parts List |
6HP26 |
1068 010 ... |
014/015/026/027/028/029/030/031/032/033/034/035/036 037/038/039/043/044/045/046/051/052/053/054/057/059 060/061/062/063/064/065/066/067/069/070/071/073/075 076/077/078/079/082/083/084/085/086/091/092/093/094 095/096/097/098/100/101/102/103/104/105/106/111/112 113/114/115/116/117/120/121/123/124/125/126/127/128 129/131/134/135/136/137/138/151/152/153/154/155/160 161/162/163/164/165/166/167/168/169/170/171/172/174 175/176/177/178/181/182/183/185/189/190/192/193/194 197/198/201/202/203/204/205/206/207/208/209/210/211 212/213/214/215/216/217 |
6HP26X |
1068 020 ... |
011/014/018/038/046/057/058/059/060/061/068/072/074 088 |
6HP28 |
1068 040 ... |
001/002/008/009/010/011/012/013/014/015/016/018/021 023/024/026/027/028/029/030/031/032/035/036/040/041 045/046/047/048 |
6HP28X |
1068 050 ... |
001/002/003/004/008/009/010/011/012/013/014/015/016 018/019/020/021/022/023/024/025/026/028/029/031/033 034/036 |
